Digital Monitoring Products XR200 Installation Guide

20

WIRING DIAGRAMS

XR200 Installation Guide Digital Monitoring Products

21

WIRING DIAGRAMS

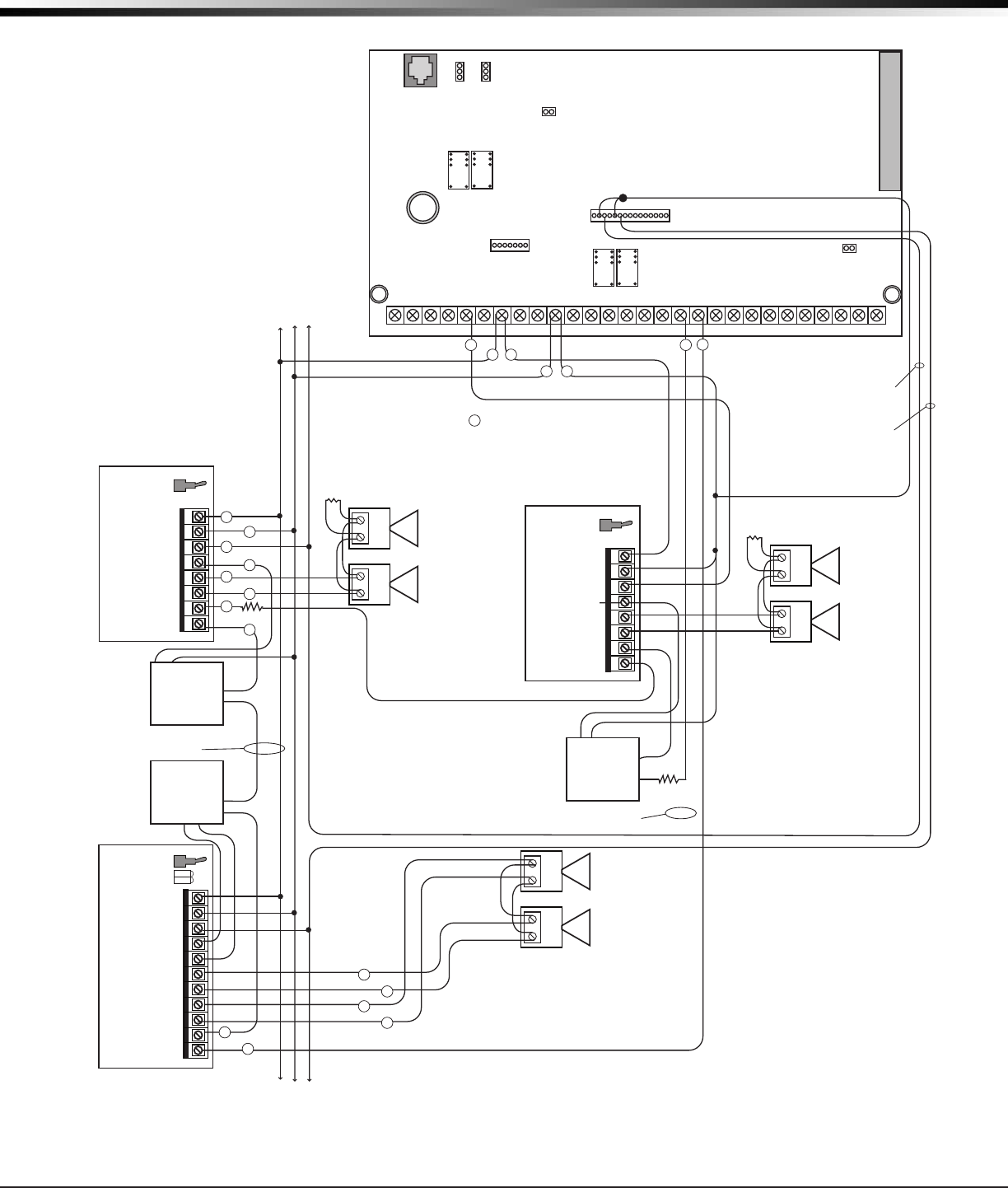

20.3 Multiple Notication Circuit Modules for Zoned Annunciation

AC

1

2

3

4 5 6 7

8

10

11 12 13 14

15

16 17 18

19

9

20

21

22 23

24

25

26 27

28

+B

BELL

GND

SMK

GND

RED

YEL

GRN

BLK

Z1

Z2 Z3 Z4

Z5

Z6

Z7

Z8 Z9+

Z9-

Z10+

Z10-

AC

-B

GND

GND

GND

GND

XR200 Command Processor™ Panel

J3

DD, MPX

Selection

Headers

J4

Tamper

Header

J2 Output Header

All outputs must be located

within the same room as

the control panel.

J10

J16

Panel

Reset

J11J12

J6 Interface Card Connector

1 AUX PWR

2 GND

3 Alarm In

4 Bell PWR In

5 Bell Out +

6 Bell Out -

7 Bell Trouble

8 Bell Trouble

866 Module

Normal/Silence Switch

1 AUX PWR

2 GND

3 Alarm In

4 Bell PWR In +

5 Bell PWR In -

6 Bell Out A +

10 Bell Trouble

11 Bell Trouble

865 Module

Normal/Silence Switch

10K EOL

DMP Model 308

UL Listed,

Polarized

Notification

Appliances

Style W

UL Listed,

Polarized

Notification

Appliances

Style y

24 VDC �

5 Amp

Maximum

Power Supply Trouble

Contacts N/C

7 Bell Out A -

8 Bell Out B +

9 Bell Out B -

504-24

Power

Supply

+ -

Zone 1 Notification

Circuit Module

DMP Model 866

45mA @ 12 VDC

1K EOL

+

-

+

-

Auxiliary Power Supply must be

regulated, UL Listed for Fire Protective

Signaling Service. Power Supplies must

have battery backup.

S

S

S

S

S

S

S

S

S

S

S

S

To additional Zone 1 Notification Circuit

Modules.

Install up to a maximum of twenty-five

866 Modules by using the relay outputs

available on the XR200 panel.

All modules must be installed in a

340FC, 349, or 350 Enclosure connected

by no more than 20 feet of conduit.

Zone 2 Notification

Circuit Module

DMP Model 865

26mA @ 12 VDC

The Auxiliary Power Supply and

Notification Circuit Module trouble

contact zone must be programmed as

a Supervisory Type zone and must be

selected for display in the keypad

status list (See Status List section in

the Programming Guide (LT-0196)).

Note: If an auxiliary power supply is

not used, terminals 3 and 4 can be

jumpered together to supply Bell

Power from the XR200 panel.

A maximum of 1.5 Amps as 12 VDC is

available from terminal 5 of the

XR200 panel.

10K EOL

DMP Model 308

UL Listed,

Polarized

Notification

Appliances

Style W

24 VDC 5

Amp

Maximum

Power Supply Trouble

Contacts N/C

24 VDC �

5 Amp

Maximum

1 AUX PWR

2 GND

3 Alarm In

4 Bell PWR In

5 Bell Out +

6 Bell Out -

7 Bell Trouble

8 Bell Trouble

866 Module

Normal/Silence Switch

Common Notification

Circuit Module

DMP Model 866

45mA @ 12 VDC

1K EOL

504-24

Power

Supply

+ -

S

S

S

S

S

S

504-24

Power

Supply

+ -

S

S

S

To additional notification

circuit modules.

Each 866 Notification Appliance

Circuit Module in alarm draws up to

30mA through its Terminal 3 Alarm

Input and 45mA from its Terminal 1

Aux Power Input.

Each 865 Notification Appliance

Circuit Module in alarm draws up to

59mA through its Terminal 3 Alarm

Input and 26mA from its Terminal 1

Aux Power Input.

S

= Supervised Circuit

K2 K4

K6 K7

Relay Output 1

Use Model 305

Relay Output 2

Use Model 305

Answering Machine

Bypass Relay

Use Model 305

Ground Start Relay

Use Model 305

Zone 1 Output

Relay 1

N/O

Orange

Zone 2 Output

Relay 1

N/O

Orange

Relay 1 and 2

Common

Gray

Outputs 3 through 10

can switch up to

50mA each at 12

VDC. This is

sufficient for one 866

Module per indicating

zone 3 through 10.
